Design Brief
ENGG220: Product Development 2
Project: Single glass electric juicer
Time: 2015 Y2
Duration: 12 weeks
Type: Group project
Description: In this project, a convincing design proposal for a domestic electric fruit juicer having a maximum capacity of one glass (150ml) of juice should be conceived, developed and presented. The product should be able to provide juice from a wide variety of citrus fruits to help user with a healthy diet based on the “5-a-day” campaign by NHS.
Persona
INSPIRATION BOARD WITH KEYWORDS
INTERACTION VERSION & COD

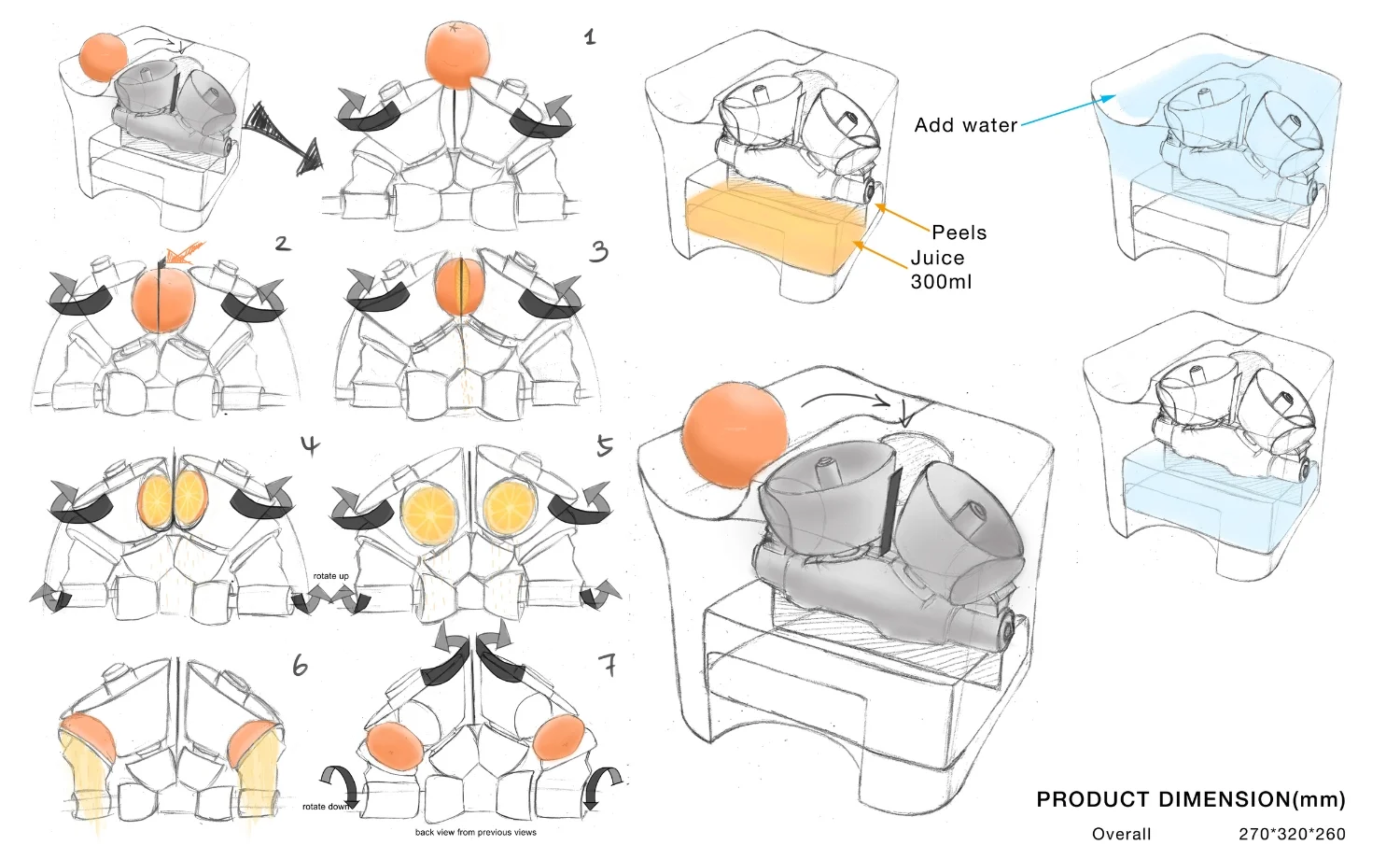

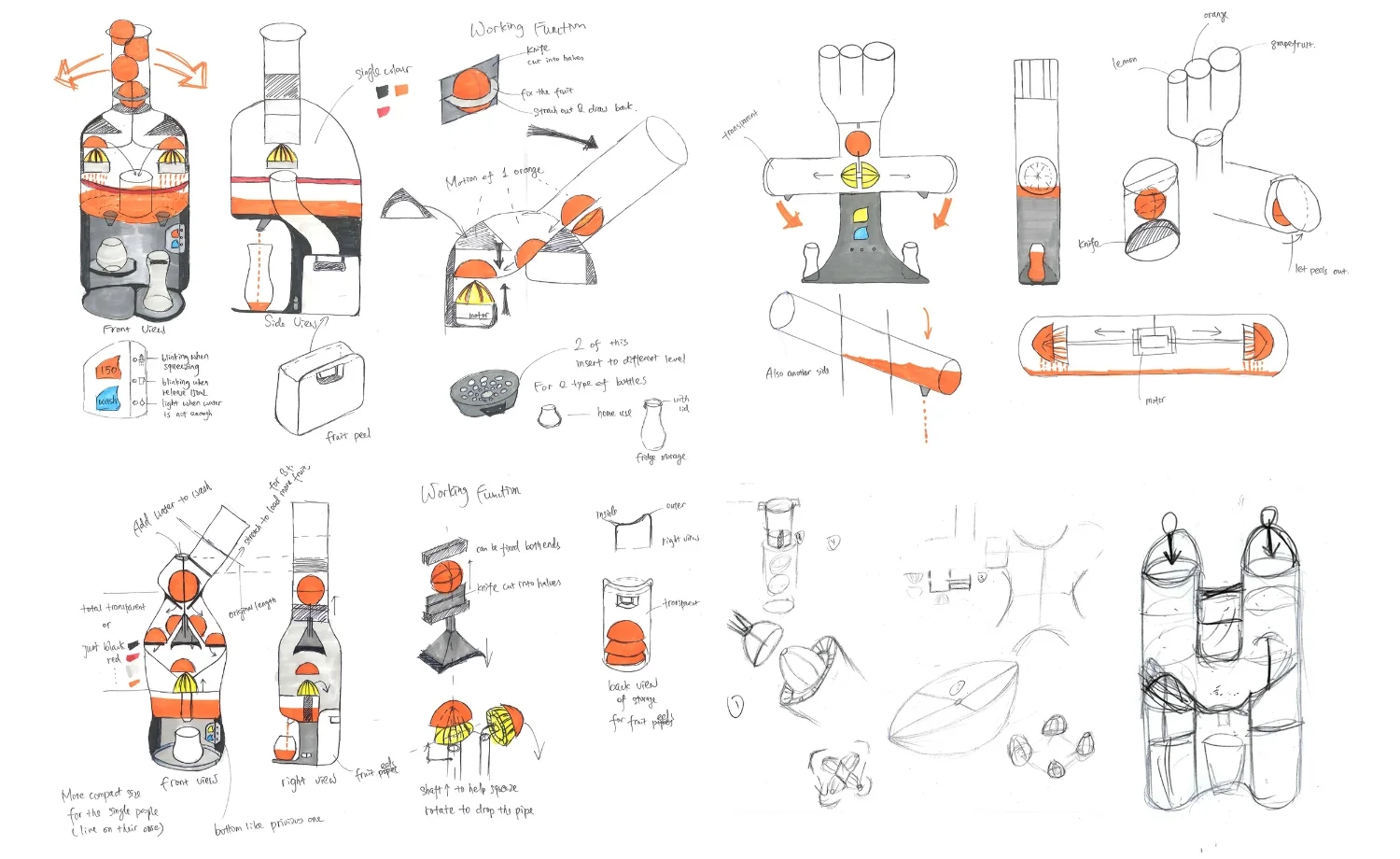

SKETCHES
NAME, LOGO &SLOGAN STORYBOARD

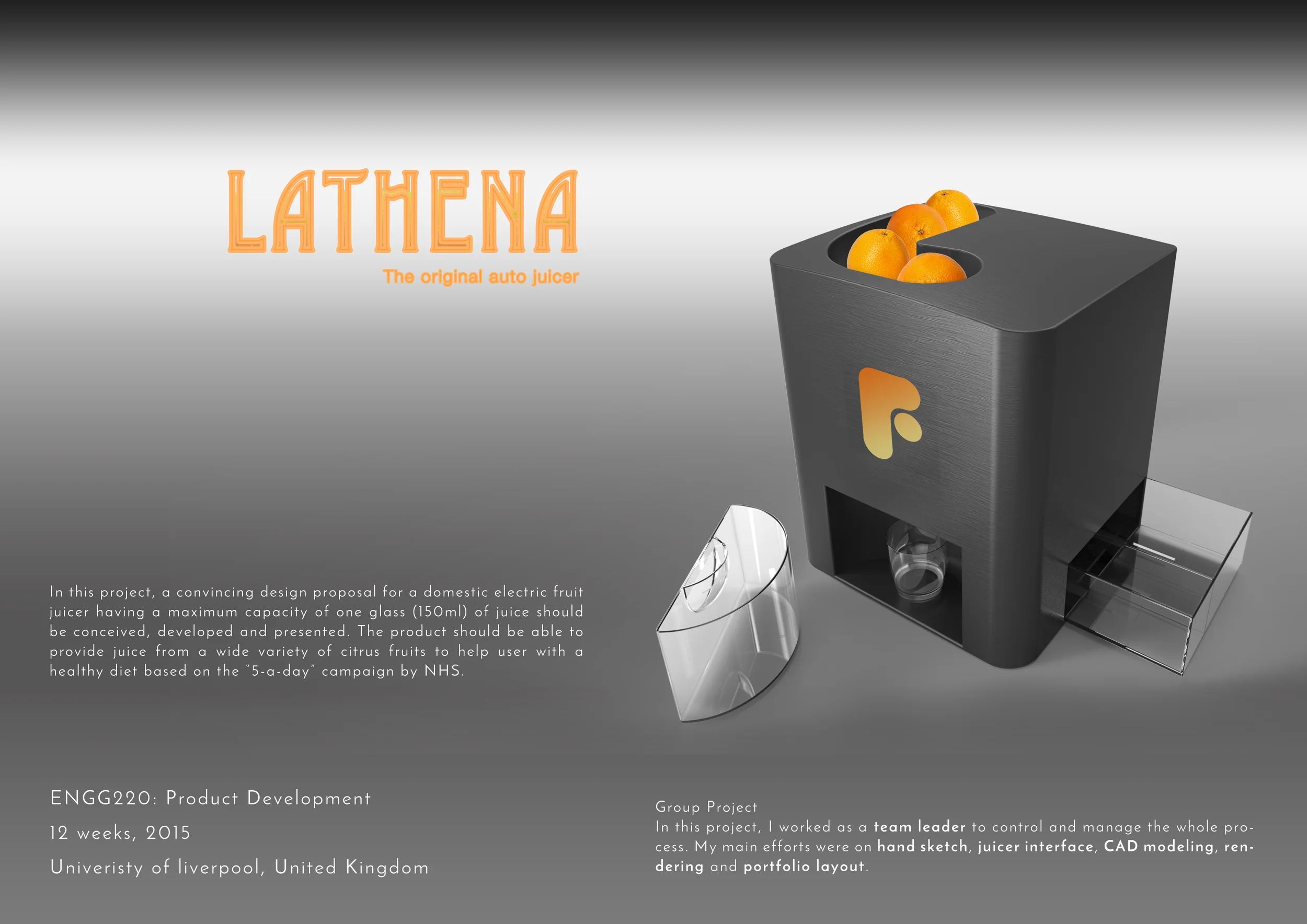

FINAL DESIGN
MAIN FEATURES
EXPLODED VIEW &DFMA

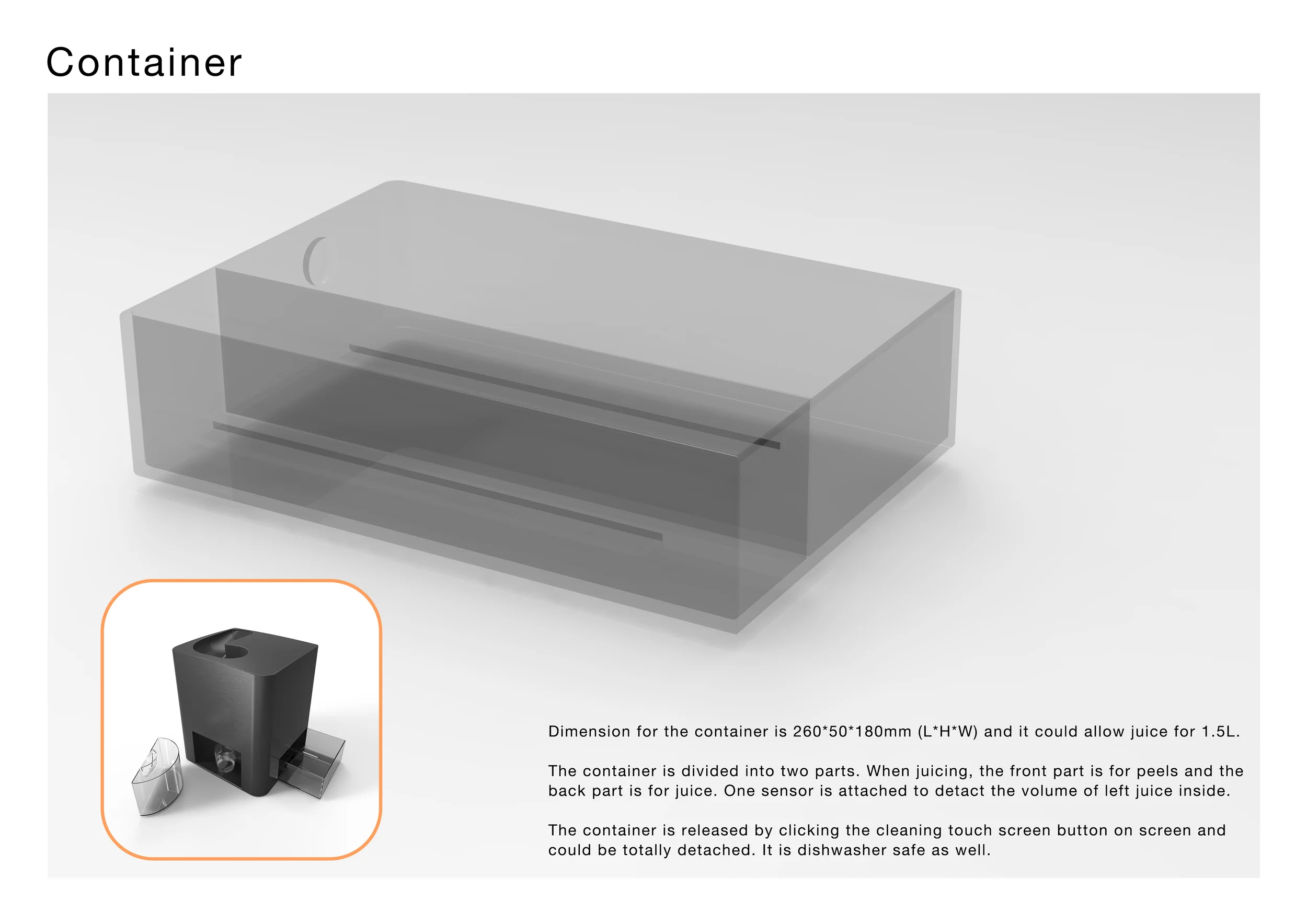

DETAILS

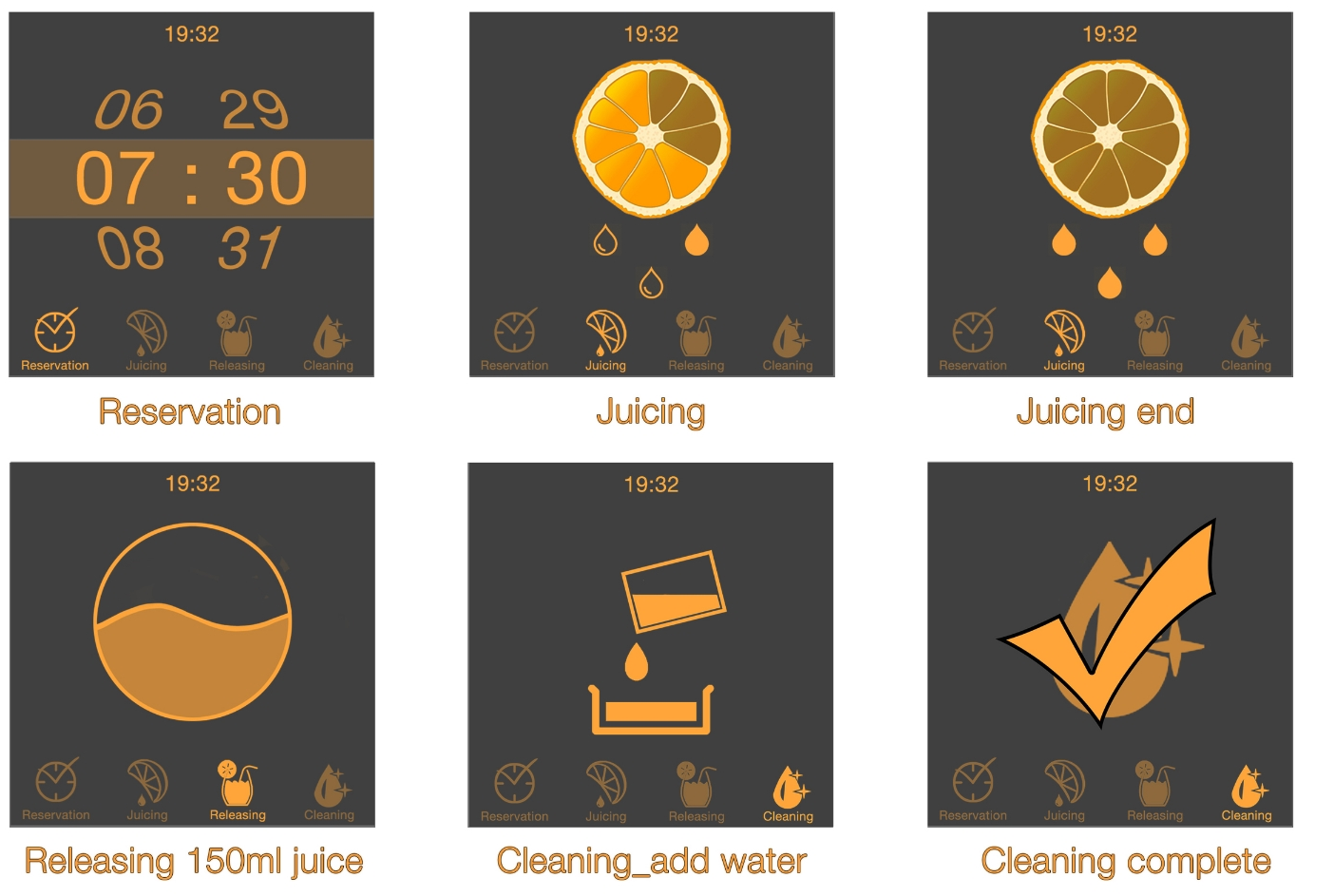

juicer interface design
Click on the left interface to experience how the product works
Our screen is LCD screen, the dimension of it is 80*80*5mm. It is compact and light. There is no geometric distortion of pictures and it can switch the images smoothly and quickly. Further more, LCD screen provides less heat. On home page, time is on the top, logo is on the middle area and there are four graphic icons on the bottom represent four functions. User can be served through touching four buttons. With this screen, our customers will obtain an excellent juicing experiences.
